1959 Apache 32 fleetside rear end

Discussion in '1955-1959' started by J. Pickett, Aug 22, 2020.

  1. J. Pickett

    J. Pickett Member

    Joined:
    Aug 22, 2020
    Messages:
    6
    Just got an Apache. I am not sure the rear end is original, can anyone help? There is a front and rear plate to the differential. Is this normal?

  2. Bill Hanlon

    Bill Hanlon Member

    Joined:
    Jun 4, 2002
    Messages:
    2,535
    Location:
    Fredericksburg TX

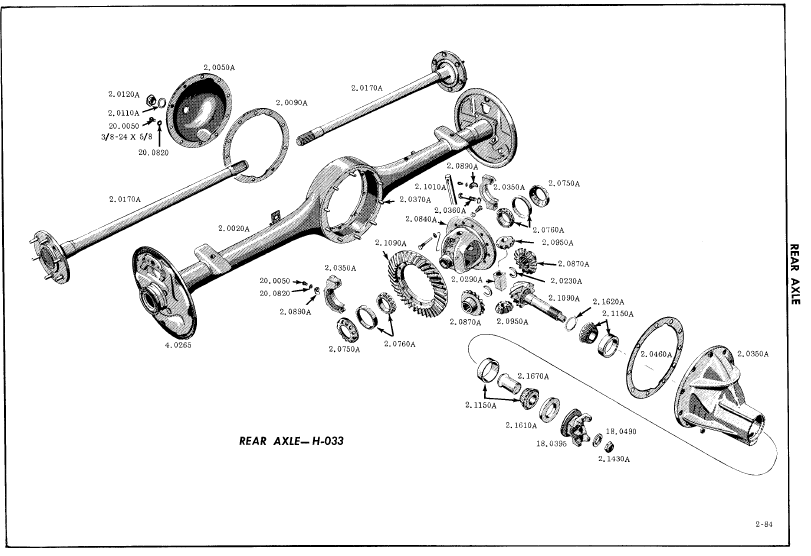

    Look like this? upload_2020-8-22_16-4-56.png

  3. J. Pickett

    J. Pickett Member

    Joined:
    Aug 22, 2020
    Messages:
    6
    That is the one. Is that what is supposed to be in my truck?

  4. Bill Hanlon

    Bill Hanlon Member

    Joined:
    Jun 4, 2002
    Messages:
    2,535
    Location:
    Fredericksburg TX
    Yes.

    GM H-033 axle was used in Chevy 1/2 ton trucks from at least the late 1930s through 1959. GMC quit using them in 1957.

  5. J. Pickett

    J. Pickett Member

    Joined:
    Aug 22, 2020
    Messages:
    6
    Thanks, Bill. I was having a hard time finding anything out about it. Now having the exploded view helps me know what I have waiting for me when I take that plate off to try to fix the leak.

  6. J. Pickett

    J. Pickett Member

    Joined:
    Aug 22, 2020
    Messages:
    6
    Bill, do you know if the front and rear gaskets are the same?

  7. Bill Hanlon

    Bill Hanlon Member

    Joined:
    Jun 4, 2002
    Messages:
    2,535
    Location:
    Fredericksburg TX
    No such luck. Cover gasket is GM # 3752660. Carrier gasket is 370246. Our host carries both (93-905 and 93-911).

  8. J. Pickett

    J. Pickett Member

    Joined:
    Aug 22, 2020
    Messages:
    6
    Ordered. Thanks

  9. Apatrick

    Apatrick Member

    Joined:
    Sep 8, 2020
    Messages:
    3
    Where does one obtain a clear diagram such as this? The manuals I have purchased are blurry at best!

  10. Bill Hanlon

    Bill Hanlon Member

    Joined:
    Jun 4, 2002
    Messages:
    2,535
    Location:
    Fredericksburg TX
    That particular diagram came from a page I scanned from a 1958 GMC Master Parts Book that covers second series '55 through '58 GMC trucks. GMC used that rear end from the late 40s through 1956 in 1/2 ton trucks. In 56 they offered the heavier duty Spicer 45 rear axle as an option and used the Spicer as the standard rear end starting in 57 while Chevrolet continued to use the H-033 through at least 1959. The Spicer 45 was later known as the Dana 44.

  11. Apatrick

    Apatrick Member

    Joined:
    Sep 8, 2020
    Messages:
    3
    would you happen to know if Chevy has such a manual, with illustrations such as the one you posted, that would cover my 1959 Apache 3100?

  12. Bill Hanlon

    Bill Hanlon Member

    Joined:
    Jun 4, 2002
    Messages:
    2,535
    Location:
    Fredericksburg TX
    I suspect there is, but I've never seen one. It is what the parts department would use at the dealership. I bought one of mine from a closing down dealership back in the early 90s. It covers all (1/2 ton through the big rigs) GMC trucks 1955.2 through 1960 and is about 4 inches thick. The other I picked up on eBay. It only covers 1/2 ton through 1.5 ton models and is about an inch thick.

    SlimSix over on the OldGMCtrucks web site has scanned a few of these (GMC) manuals and offers them for sale on CD. A lot, but not all, of the parts are the same between Chevy and GMC. Engines, some of the transmissions and rear axles are different as well as minor bodywork. You can reach him at stovebolt651@yahoo.com

    Last edited: Sep 8, 2020
  13. Bill Hanlon

    Bill Hanlon Member

    Joined:
    Jun 4, 2002
    Messages:
    2,535
    Location:
    Fredericksburg TX
  14. Apatrick

    Apatrick Member

    Joined:
    Sep 8, 2020
    Messages:
    3
    I wasn’t looking until I can across the illustration of the rear end you posted. I will be looking now for my 1959 Chevy Apache 3100. Thank you!
