Help Identifying Brakes/Installing Parking Brake

Discussion in '1947-1954' started by Andrew Bahnsen, Jul 19, 2021.

  1. Andrew Bahnsen

    Andrew Bahnsen Member

    Joined:
    Jul 19, 2021
    Messages:
    10
    Hi There!

    I have just purchased a 1949 3100 and am in the process of making everything work properly. There is currently no functioning parking brake and I am hoping someone out there can help me make it work.

    I initially bought this emergency brake cable Emergency Brake Cable, 1/2 Ton, Takes 2 (47-50 Uses Your End) and then shortly there after realized my axle and brakes are not stock. See below. 20210718_175302.jpg 20210719_163218.jpg

    So if anyone out there knows how to attach the cable (if possible) to the brake from the hole on the back of the drum, or parts that I'll need to do so, it would be greatly appreciated.

    TIA

    Andrew

    vwnate1 likes this.
  2. cmkruse

    cmkruse Member

    Joined:
    Feb 19, 2006
    Messages:
    533
    Location:
    SUNNY FLORIDA

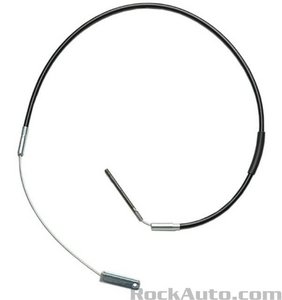

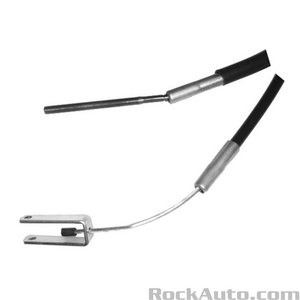

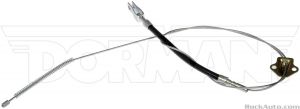

    Your brakes have been converted to Self adjusting Bendix type. They do not have the ability to connect an emergency brake cable. [​IMG] this is an example of a cable that would be used with the correct Bendix brake. The ends have an over size collar - insert thru the backing plate and have a retainer clip to prevent them backing out. The cable spring attachment end connects to the actuating lever. I will try and find a picture of the correct Bendix Brake setup that will allow you to use the original emergency ( actually a parking brake) brake set up. Do you still have the original parking brake pedal and under chassis cross bar and the brake cable mounting brackets on the frame rails?

    vwnate1 likes this.
  3. cmkruse

    cmkruse Member

    Joined:
    Feb 19, 2006
    Messages:
    533
    Location:
    SUNNY FLORIDA
    Andrew here is a picture of (a rusty) I believe 54 bendix assy showing the park cable attached to the actuating arm. This is what you will need to use the original park brake with upgraded bendix brakes. The original truck came with Huck brakes and parts for those are not so easy to find whereas the bendix stuff is available at various sources including our sponsor here. The cables you purchased wont work so you will need to buy new cables.
    upload_2021-8-9_21-6-38.jpeg upload_2021-8-9_21-6-38.jpeg upload_2021-8-9_21-6-38.jpeg

  4. Andrew Bahnsen

    Andrew Bahnsen Member

    Joined:
    Jul 19, 2021
    Messages:
    10
    Hi Cmkruse, thank you so much for your reply and help. I do still have the original parking brake pedal and under chassis cross bar and the brake cable mounting brackets. I assumed I'd have to buy a universal electric parking brake but it would be awesome if there was some sort of adapter.

    vwnate1 likes this.
  5. cmkruse

    cmkruse Member

    Joined:
    Feb 19, 2006
    Messages:
    533
    Location:
    SUNNY FLORIDA
    Here is the link for the correct cable. Parking Brake Cable-1/2 Ton-Repro-Classic Chevy Truck Parts (classicparts.com) Part number

    71-711. If you are keeping stock and you have all the chassis parts all you would need to do is convert to different Bendix brakes instead of the self adjusters you now have. You would need to change the backing plates over to the type that have the actuating lever and manual adjustment. Its no that difficult. The original pedal and connecting parts are available to some extent. I did this about ten years ago so give a little time to see if I have more pictures or I can take some of my truck so you can see how it all goes together. If you don't have a factory assy manual yet I would suggest you get one they are really handy and show the parking brake in some detail. If you still have Huck brakes on the front you might want to consider changing them over also. Some of the other bolters may chime in and help with finding out what year parts you need. If you need the front how to convert let me know I have a copy of a good How To.
    By the way Question - is your pedal installed and connected to the under chassis connecting rod that goes to the cross shaft?

    Craig

    vwnate1 likes this.
  6. cmkruse

    cmkruse Member

    Joined:
    Feb 19, 2006
    Messages:
    533
    Location:
    SUNNY FLORIDA
    Ok Andrew, My Bad. You have the right cables. All you need is the backing plates from a later model 3100. I can't remember right off hand what year the converted to the Bendix system. I do some more research and see what I find. Here are a couple of pictures from my frame and backing plates. If you get 1947-1954 truck Factory Assembly manual you will find a breakdown of the parking brake in section 5 sheet 3.00. IMG_0480[1].JPG IMG_0482[1].JPG IMG_0481[1].JPG IMG_0483[1].JPG IMG_0480[1].JPG

    vwnate1 likes this.
  7. cmkruse

    cmkruse Member

    Joined:
    Feb 19, 2006
    Messages:
    533
    Location:
    SUNNY FLORIDA
    Andrew, in the photos, my cables aren't hooked up yet to the cross shaft. Also my parking brake cable at the backing plate has the bolts installed from the outside as seen in the pictures, It is recommended that the bolts be installed from the inside from some other members. Your choice I guess. I'm leaving mine like they are. Don't for get the dust seals.
    Now for the year that the 3100's started using the Bendix brakes it was in 1951 if I'm not mistaken. So if you can get a set from someone doing a resto mod or disk brake conversion you would be all set. I don't know if what you have can be converted or not. Maybe some one else will chime in and have more information. Start looking in the parts for sale forum or post a want ad in that section.

    vwnate1 likes this.
  8. Andrew Bahnsen

    Andrew Bahnsen Member

    Joined:
    Jul 19, 2021
    Messages:
    10
    vwnate1 likes this.
  9. cmkruse

    cmkruse Member

    Joined:
    Feb 19, 2006
    Messages:
    533
    Location:
    SUNNY FLORIDA
    Hi Andrew, The replacement parts you linked to are what you would need to convert from the self adjusting type but I'm not sure if that's all you would need. I seem to recall a spring that goes on the ends of one of the spreader bars. I asked Nate what year the Bendix Brakes where used and he said from 51 to 67 so maybe you have a junk yard around where you could find some of the later backing plates if you need then or maybe just the brake hardware you need. You might post " 51 - 54 Bendix Brake Picture wanted" and some one might have a good pic of the internals so you can see if you can convert yours. Remember to take lots of pictures of your work because down the road you will try and remember what all you did! Ask me how I know!
    Craig

    vwnate1 likes this.
  10. coilover

    coilover Member

    Joined:
    Mar 30, 2005
    Messages:
    2,536
    Location:
    Plano US
    Why mess with a cross shaft to try to connect cave man brakes to space age open rear end when making the whole set up modern is so cheap, easy, and simple. Thread the rod that runs from pedal to cross shaft, install equalizer "banana" on that rod, run cable loop from backing plate on one side to the other and through the equalizer. Valla!!! you now have modern e-brake and a half dozen ancient parts for a trot line. Picture of a 52 3100 on an S10 chassis with the factory AD e-brake pedal/rod hooked to the modern S10 self adjusting brakes. Cost is almost zero.

    S10 048.jpg S10 049.jpg

    vwnate1 likes this.
  11. vwnate1

    vwnate1 Member

    Joined:
    Jan 1, 2000
    Messages:
    11,422
    Location:
    AMERICA !
    What Evan and Craig said ~ you need the spreader bar and drop arm plus the anti-ratle spring, it's sort of oblong shaped and used to be included in the '51 ~ '67 brake spring kits .

    There's also a ivot pin that holds the drop arm (fulcrum) to the traiilng brake shoe .

    Quite often you can find a Hot Rodder who has an old axle with brakes on it lying in the grass, I like to buy this sort of thing to get all the proper hardware .

    You don't mention where you live, I'm in So. Cal. where the LKQ self service junkyards still get in the occasional 1960's pickup or early 1970's C van.....
