How to install fender welting

Discussion in '1947-1954' started by ol' chebby, Nov 21, 2012.

  1. ol' chebby

    ol' chebby Member

    Joined:
    Dec 11, 2007
    Messages:
    3,164
    Location:
    Charlotte,NC
    Time for fender welting on the rear fenders.

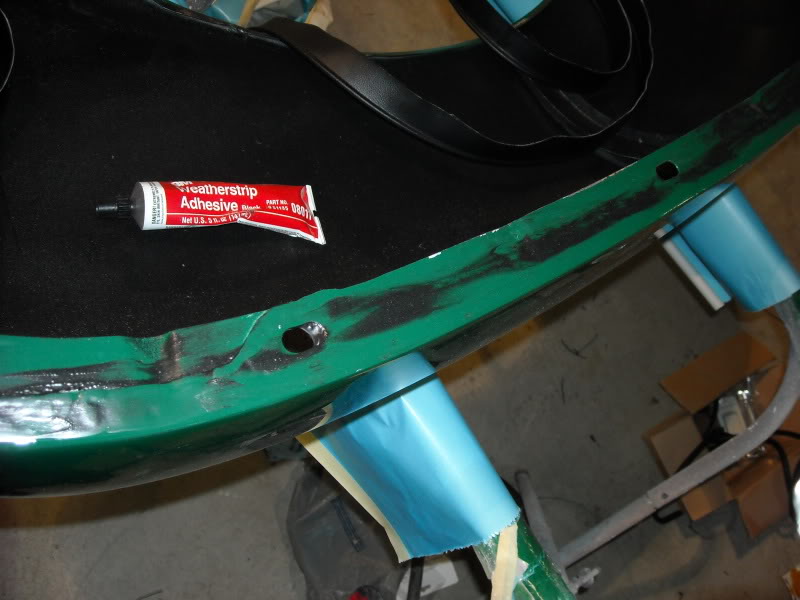

    Start by spreading a thin layer of weatherstrip adhesive on the fender lip.

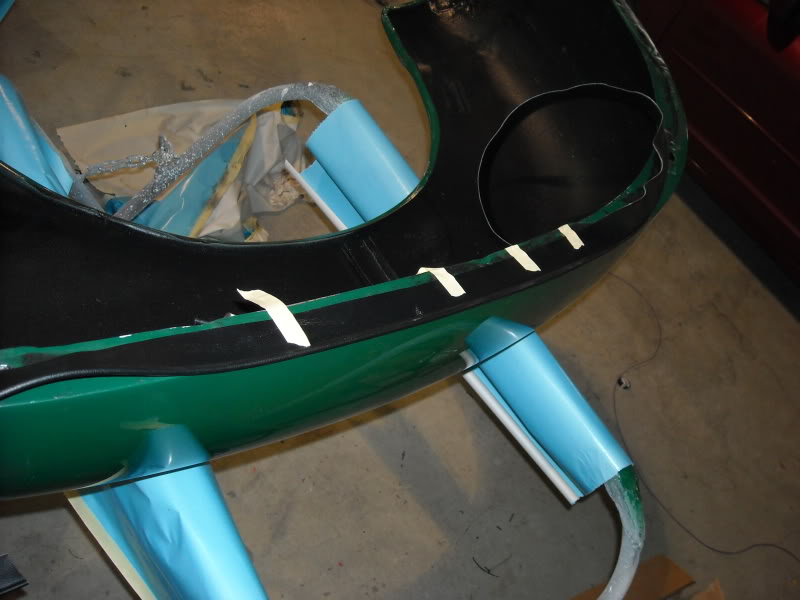

    Lay out welt and cut to approximate size. Run another thin layer of adhesive across the welt and adhere to straight run. Glue down and tapr to hold in place.

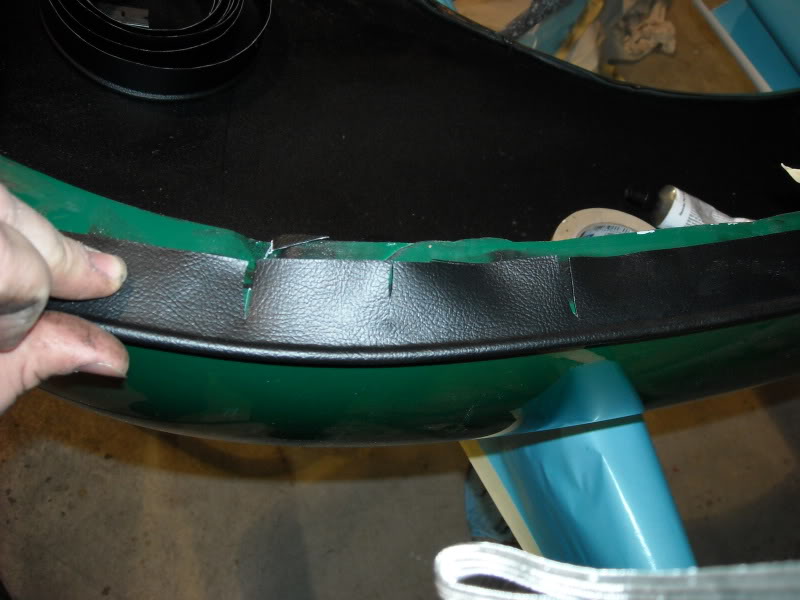

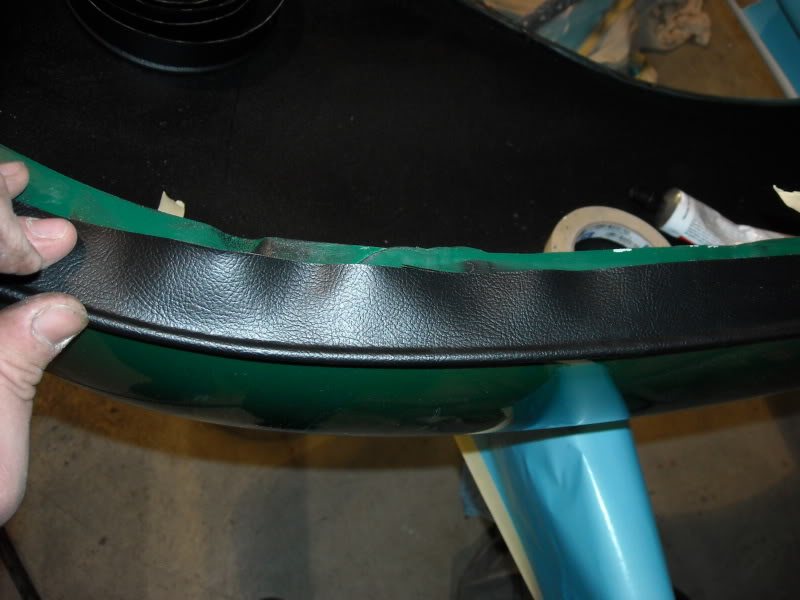

    Bend welt around curved section, and it will show you where to notch by buckling.

    Cut v notches,

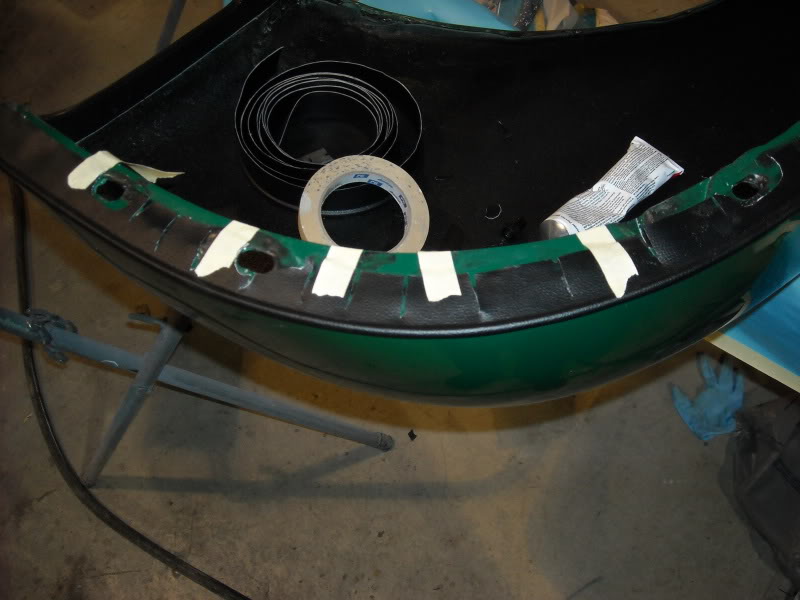

    Then glue and tape down.

    Now have someone hold the fender up for you and insert hardware..

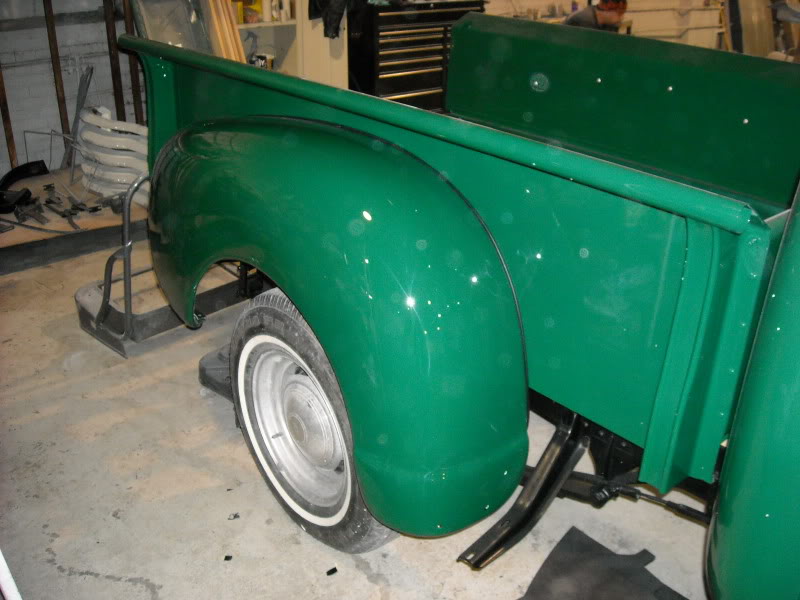

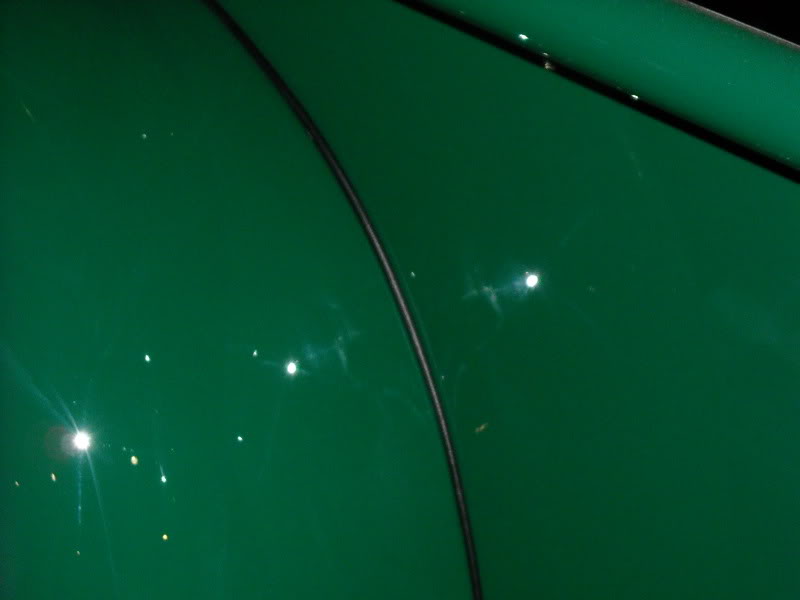

    See how nice and finished the welt looks.

    Cut the welt even with the bottom of the bed.

    Texas guy likes this.
  2. Haasman

    Haasman Member

    Joined:
    May 10, 2010
    Messages:
    345
    Location:
    N. CA, south of SF
    Great tip! Thanks

    Haasman

  3. Texas guy

    Texas guy Member

    Joined:
    Oct 27, 2019
    Messages:
    2
    Great and simple explanation. I will be doing this shortly and needed this advise...thanks
