Saginaw Transmision 4 sp. Backup Switch

Discussion in '1947-1954' started by Blueflame236, Oct 15, 2010.

  1. Blueflame236

    Blueflame236 Member

    Joined:
    Mar 29, 2008
    Messages:
    1,555
    Location:
    Norway

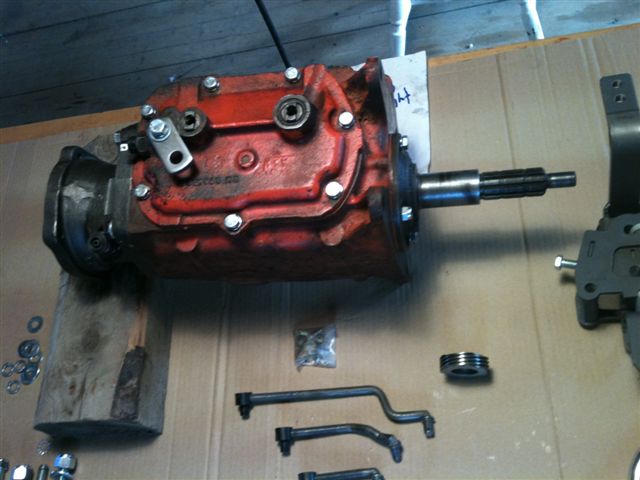

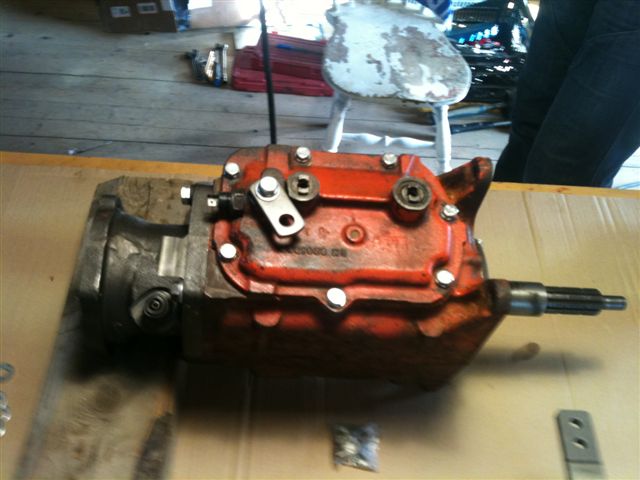

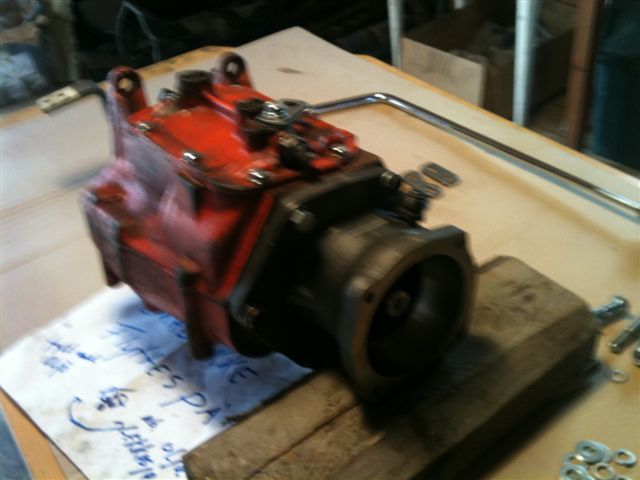

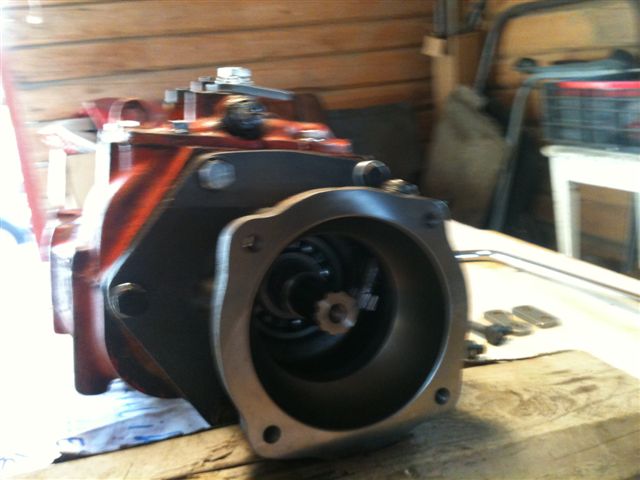

    Saginaw 4 speed .Near one of the lever/rod connections there is an backup Switch installed. The switch has 2 electric connections where a 2 el.cable should be mounted.Does some of you guys know what the function is of the backup switch and where to connect it? The attached pictures show the switch on the left side cover behind the lever.

    Martinius.


    Attached Files:

    Last edited: Oct 15, 2010
  2. Flashlight

    Flashlight Member

    Joined:
    Apr 6, 2009
    Messages:
    676
    Location:
    Greeneville, Tennessee....Looking out over the Smo
    Not sure what year tranny yours is, but mine did not have this, perhaps mine is a older tranny.

    Flashlight

  3. Bill Hanlon

    Bill Hanlon Member

    Joined:
    Jun 4, 2002
    Messages:
    2,748
    Location:
    Fredericksburg TX
    I'm no Saginaw (or any other kind of transmission) expert, but the switch should have +12 (or +6 if you have a 6 volt system) on one connector (either one, not important) available any time the key is on. The other connector has a wire that connects to what we in the US call "backup lights". The lights come on when you shift into reverse illuminating the area behind your car (truck) at night.

  4. vwnate1

    vwnate1 Member

    Joined:
    Jan 1, 2000
    Messages:
    11,677
    Location:
    AMERICA !
    What Bill Said

    Just remember to use a 5 ampere fuse ! .

    If you put some driving lights under the bed a little bit , you'll have really bright
    backup lighting and the lip of the bed prevents blinding others behind you by cutting off the beam & making it flat and on the ground where it belongs...

    If you go this route , use a Hella/Bosch cube relay to take the load off the switch .

  5. Blueflame236

    Blueflame236 Member

    Joined:
    Mar 29, 2008
    Messages:
    1,555
    Location:
    Norway
    Wiring diagram backup lights ?

    Its a good idea to mount the driving lights under the bed.

    Nate, Could you be kind to draw a diagram . What i have is a 12v system with neg.ground.

    The Bosh/Hella cube relay how does it look like ?

    Martinius.


  6. Bill Hanlon

    Bill Hanlon Member

    Joined:
    Jun 4, 2002
    Messages:
    2,748
    Location:
    Fredericksburg TX

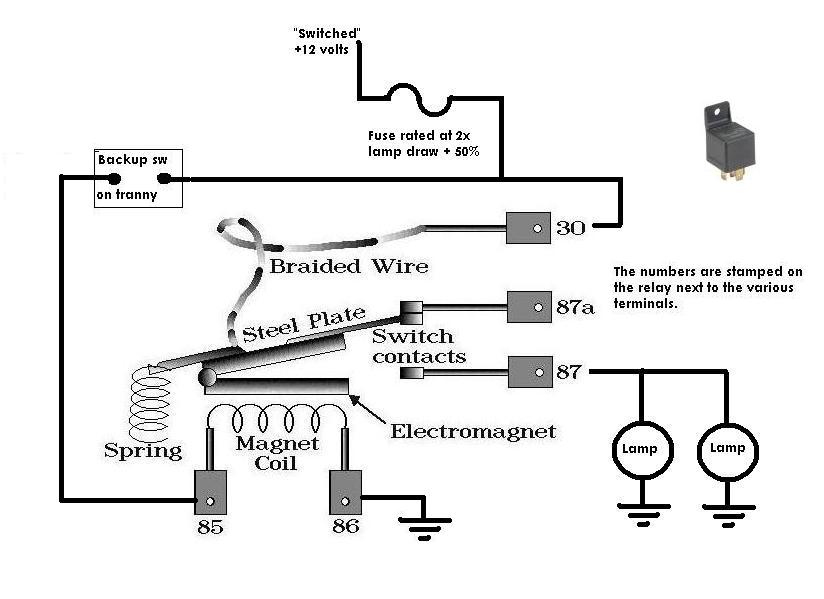

    Let's try again.

    I screwed up the previous diagram, so I deleted it. This is much better.


    Attached Files:

    • x.JPG
      File size:
      52.9 KB
      Views:
      1,041
  7. vwnate1

    vwnate1 Member

    Joined:
    Jan 1, 2000
    Messages:
    11,677
    Location:
    AMERICA !
    THANX Bill !

    Martinus ;

    See the little picture in the upper right corner ? these " cube " relays are used on most all European cars from 1968 on , old VW Beetles have 50 A. ones under the rear seat on the left side ...

    They can be used for starter kickers , fog / driving and backup lights , additional horns , electric fans , on and on....

    They're marked next to the prongs with the circuit #'s , # 30 is always the battery feed .

    # 15 is the switched ignition feed , so on and so forth .

    many have built in ATO typ (flat) fuses .

  8. Blueflame236

    Blueflame236 Member

    Joined:
    Mar 29, 2008
    Messages:
    1,555
    Location:
    Norway
    This whas exactly what i needed.

    Thank you guys for the good help Nate and Bill. This is exactly what i need.

    Sinc. Martinius.:D

  9. ol' chebby

    ol' chebby Member

    Joined:
    Dec 11, 2007
    Messages:
    3,164
    Location:
    Charlotte,NC
    It is called a spdt relay....single pole double throw. All terminals are marked. All a relay is is a magnetic switch. They can be used for lots of things, most commonly to send 12v straight to the accessory, instead of all the current going through a switch.

    85 and 86 poles are your switch. 12v from the dash switch to one and ground to the other, doesn't matter which one. When you flip the switch, a magnet pulls the circuit inside.

    30 is input. whatever is on 30 will come out at 87a when the relay is triggered. 12v to 30 in most set ups.

    87 is relay at rest. most don't hook anything to this. If you are wiring an interrupt circuit ( like my flamethrowers), this is the output, which will be broken when triggered.

    87a is output when triggered. Whatever you hook up to 30 will come out here.


    A shortcut in hooking it up is to run 12v to 30 and jump to 86. Wire from 85 through your switch then to ground. This way you don't have to run an extra power wire.

  10. Bill Hanlon

    Bill Hanlon Member

    Joined:
    Jun 4, 2002
    Messages:
    2,748
    Location:
    Fredericksburg TX
    As usual ....

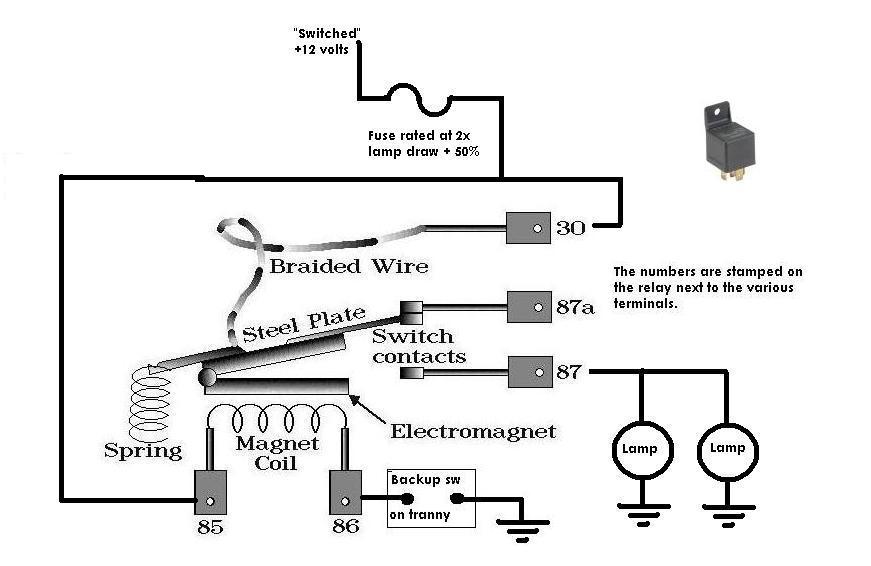

    Russ is right. A better circuit would be to put the backup light switch between the relay coil and ground. Two reasons.
    1. You only have to run one wire to the transmission switch.
    2. If that wire were to short to ground the only thing bad that would happen is your backup lights would come on when you didn't expect them to. In my previous schematic if either of the two wires connected to the transmission switch shorted to ground the fuse would blow.

    Here is the new schematic:


    Attached Files:

    Last edited: Oct 21, 2010
  11. vwnate1

    vwnate1 Member

    Joined:
    Jan 1, 2000
    Messages:
    11,677
    Location:
    AMERICA !
    O.k. ,

    As long as you're getting into the esoteric end of it , these relays , when used on fog or driving lights , can (should) be wired into the opposing light's circuit so the fog lights only come on with the low beams , conversely the driving lights only come on with the high beams .

    This is easily done by running the ground side of the relay through the opposing circuit .
