What happened to my paint??

Discussion in '1947-1954' started by Bilbo, Dec 1, 2014.

  1. 50 Chevy LS3

    50 Chevy LS3 Member

    Joined:
    Jan 14, 2013
    Messages:
    930
    Location:
    Indiana
    Bill, I could tell some horror stories on this subject, but, better not...

  2. Lakeroadster

    Lakeroadster Member

    Joined:
    Jan 23, 2011
    Messages:
    1,591
    Location:
    Central Colorado
    Fuel Tank Overflow Expansion Tank

    Why couldn't a fella set up the fuel tank just like a radiator? You would add a vent line (inside the cab) to the gas filler neck and run it to an expansion tank (mounted beside the gas tank).

    Fill the truck up with gas and place the non vented gas cap on. When the gas expands it will flow into the expansion tank (and not down the outside of the truck). When the engine is running it will then pull a vacuum and suck the gas out of the expansion tank. When the expansion tank is empty it will operate simply as a vent.

    The volume of the expansion tank would be based on the capacity of the fuel tank and the maximum temperature rise for the geographic location of the truck.

    Sounds logical to me... what say ye?

    [​IMG] [/quote]

    Last edited: Dec 16, 2014
  3. vwnate1

    vwnate1 Member

    Joined:
    Jan 1, 2000
    Messages:
    11,059
    Location:
    AMERICA !
    I Like

    The roll over vent valve my own self .

    My rig ? I'd prolly just add an open vent tube right close to the top of the filler neck and run it outside the cab so mud dauber wasps could screw it up and kill me .

    I'd love to hear some stories Steve , i never shy away from horror stories when it comes to old vehicle safety .

  4. Lakeroadster

    Lakeroadster Member

    Joined:
    Jan 23, 2011
    Messages:
    1,591
    Location:
    Central Colorado
    Seems like the gas fumes would deter any living insect from setting up home in a gas tank vent line? But if you are concerned about something getting into it go to your local tractor supply, head for the hydraulic area (log splitter parts), and buy a sintered bronze vent fitting for the open end of the hose. I have one on my ole crate.

    [​IMG]

    [​IMG]

  5. john1

    john1 Member

    Joined:
    Feb 8, 2005
    Messages:
    45
    Location:
    McHenry
    Google up evap and the yellow sac spider. They love to nest in evap canister vent lines which will turn on the check engine light for a restricted vent. Common enough in Mazda's to create a recall, but has been seen by multiple manufacturers. Maybe they enjoy the alcohol fumes?

    John

  6. Bilbo

    Bilbo Member

    Joined:
    Jul 4, 2007
    Messages:
    682
    Location:
    Magnolia, Texas
    [/QUOTE]

    Pretty good concept, Roadster. I wonder what effect having to pull negative pressure on the fuel tank will have on engine performance? I also wonder if the unvented fuel caps will work on our filler neck? (That, I can find out at my FLAPS). Looks like the recovery tank would need to be mounted as high as practical, to allow the fuel return with minimal vacuum?
    My original idea was to keep the vented gas cap, and install a vent tube high enough up the filler neck that the gas pump nozzle will insert past the vent tube. Then run a steel line inside the cab, and out the floor at the back, including either a screen or sintered metal fitting on the end of the vent. Can you all see any particular problems with this plan? BTW, Roadster, since you're an engineer, would the new vent fitting in the filler neck have to be welded instead of brazed, since it's inside the cab? In industry, if a fire can cause failure of a part to increase fuel to the fire, that part cannot be made of plastic, brass, or copper. I'm not real familiar with all those rules, but when it came to solenoid valve bodies, I always had to consider that.

  7. Lakeroadster

    Lakeroadster Member

    Joined:
    Jan 23, 2011
    Messages:
    1,591
    Location:
    Central Colorado
    Without the expansion tank, the issue I see is gas running out under the truck. Depending on where the truck is sitting (like in your garage) that can be a big hazard. The more I thought of this the more I was concerned about it. That's what prompted me to dig deeper and post the expansion tank sketch.

    Brass vs. Steel fittings: I don't know the answer from a DOT perspective. By the time the fire gets hot enough inside your truck to effect the soldered joint or the brass fitting, the temperatures will have far exceed the flash point for gasoline, thus bad stuff will have already happened.

    Your stock fuel pump should have no problem dealing with the minimal vacuum (less than 1 psi) it takes to evacuate the fuel in the expansion tank. Keep in mind the only time it will see this vacuum is if there is gas in the expansion tank. As soon as the fuel pump starts pulling the fuel out of the tank the slight vacuum in the fuel tank will suck the gas out of the expansion tank.

    Location of the expansion tank would be beside the stock tank, low enough that the fuel can gravity flow into it when the fuel expansion in the fuel tank occurs.

    References:


    Last edited: Dec 21, 2014
  8. Bilbo

    Bilbo Member

    Joined:
    Jul 4, 2007
    Messages:
    682
    Location:
    Magnolia, Texas
    Thanks for the feedback! I'm liking your idea more now. Appreciate the perspective of someone whose analytical skills have been honed better than mine! I expect to carry through with your plan, but it will be a few weeks. I'll keep photos and updates when I get moving on it.;)

  9. Lakeroadster

    Lakeroadster Member

    Joined:
    Jan 23, 2011
    Messages:
    1,591
    Location:
    Central Colorado
    How big of an expansion tank?

    Assumptions:
    18 gallon fuel tank, tank full of gas
    50 degree F gasoline at fill (underground storage tank)
    120 degree F inside cab (summer time)

    The volume increase will be 0.67 gallons

    That's a lot of expansion!

    Assuming a 1 gallon capacity expansion tank built from 4" pipe it would need to be about 18-1/4" inside length. ​

    Bilbo... could you take some photos of your existing filler neck inside the cab? Curious how much space you have and what the stock filler neck configuration looks like.

    Looking forward to you making this become a reality.

    Thanks,

    John

    References:

    Last edited: Dec 21, 2014
  10. Lakeroadster

    Lakeroadster Member

    Joined:
    Jan 23, 2011
    Messages:
    1,591
    Location:
    Central Colorado
    Spiders! Gas-sniffing arachnids invade fuel lines

    Thanks John1, I followed your lead and found this article. Amazing this little dudes can live in a gasoline vent line. He does look a little "buzzed" :eek: Very interesting... http://www.techhive.com/article/214...es-force-a-software-fix-for-mazda-sedans.html

    [​IMG]

    Last edited: Dec 21, 2014
  11. Bilbo

    Bilbo Member

    Joined:
    Jul 4, 2007
    Messages:
    682
    Location:
    Magnolia, Texas
    Thanks for the info. I found a picture from assembly. Looks like the overflow tank will need to be mounted so that the 'air space' above the vent tube will be above the point where the overflow tube connects to the filler neck?


    Attached Files:

  12. Lakeroadster

    Lakeroadster Member

    Joined:
    Jan 23, 2011
    Messages:
    1,591
    Location:
    Central Colorado
    How about a sketch...

    Looks like there is plenty of room there for some additional tubing and the expansion tank.

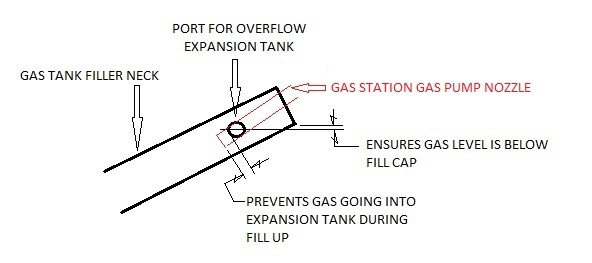

    As for the port location on the filler neck, I am thinking this would be the ideal set-up:

    [​IMG]

    But if you had a non vented filler cap that you were absolutely certain didn't leak you could merely splice into the vent line, maybe even simply put a tee in the rubber hose that's already in the vent line and that would feed the expansion tank.

    Hope this makes sense.

  13. Bilbo

    Bilbo Member

    Joined:
    Jul 4, 2007
    Messages:
    682
    Location:
    Magnolia, Texas
    Thanks again for the follow up. Very helpful! The existing filler neck has an internal 'tube' that extends past the point of the vent attachment, so that may help with the design. I'll have to get a measurement as to how far it actually extends down the neck.

    Last edited: Dec 23, 2014
  14. vwnate1

    vwnate1 Member

    Joined:
    Jan 1, 2000
    Messages:
    11,059
    Location:
    AMERICA !
    My Question :

    Why wouldn't you add the vent pipe bung to the top surface ? .

    It's be raised up higher and so less likely to allow liquid fuel from getting into the vent pipe on turns .

    Just wondering :confused: .

  15. Lakeroadster

    Lakeroadster Member

    Joined:
    Jan 23, 2011
    Messages:
    1,591
    Location:
    Central Colorado
    Hey Nate, the side port isn't the vent port, it's the port that goes to the expansion tank. When the gas expands it runs into the side port and the gas flows into the expansion port.

    The vent port is a separate port.

    I think it would be best to keep the liquid level below the filler cap, even with a non vented cap, if at all possible.

    Last edited: Dec 26, 2014
  16. vwnate1

    vwnate1 Member

    Joined:
    Jan 1, 2000
    Messages:
    11,059
    Location:
    AMERICA !
    Fuel Vapors

    Well John ;

    I have worked on many pollution controlled vehicles and they all have the port on the upper side of the pipe for the reason I mentioned ~ once the vapor separator gets soggy , you're kinda done there .

    Maybe it's because I drive my oldies too fast , I know how the fuel loves to slosh up the filer pipe .

  17. Lakeroadster

    Lakeroadster Member

    Joined:
    Jan 23, 2011
    Messages:
    1,591
    Location:
    Central Colorado
    You ole canyon carving Hot Rodder :cool:

    Put it on the top... I'm ok with that. But if it is too high and the filler cap doesn't seal liquid tight, fuel will be running down the side of the truck again.

  18. vwnate1

    vwnate1 Member

    Joined:
    Jan 1, 2000
    Messages:
    11,059
    Location:
    AMERICA !
    Vent Pipe Bung

    Just so ;

    I wasn't meaning to put it against the cap , but only 1" or so below that .

    I'm not sure if I'm a Hot Rodder or just a damnfool who enjoys rapid motorvation :p .

  19. mobileortho

    mobileortho Member

    Joined:
    Sep 24, 2006
    Messages:
    547
    Location:
    Hampton, VA
    Ditto! I'm assuming your using a vented cap also.

  20. vwnate1

    vwnate1 Member

    Joined:
    Jan 1, 2000
    Messages:
    11,059
    Location:
    AMERICA !
    Fuel Tank Venting

    Well Robert ;

    If you add a fill pipe vent , you wil no longer need the vented gas cap....

    The systems went to closed in 1971 (IIRC) in order to try and capture the hydrocarbons that naturally evaporate from fuel tanks .

    Simply duplicating the top fitment bung and running a vent hose up then down and out , should allow the use of a non vented cap and no more ruined paint .

    I need to look into where a TSS is in So. Cal. as that vent hose end looks pretty dang slick to me .
